Name: Ringlock Scaffolding Vertical Standard Parts with spigots
SKU: DA-R1001A

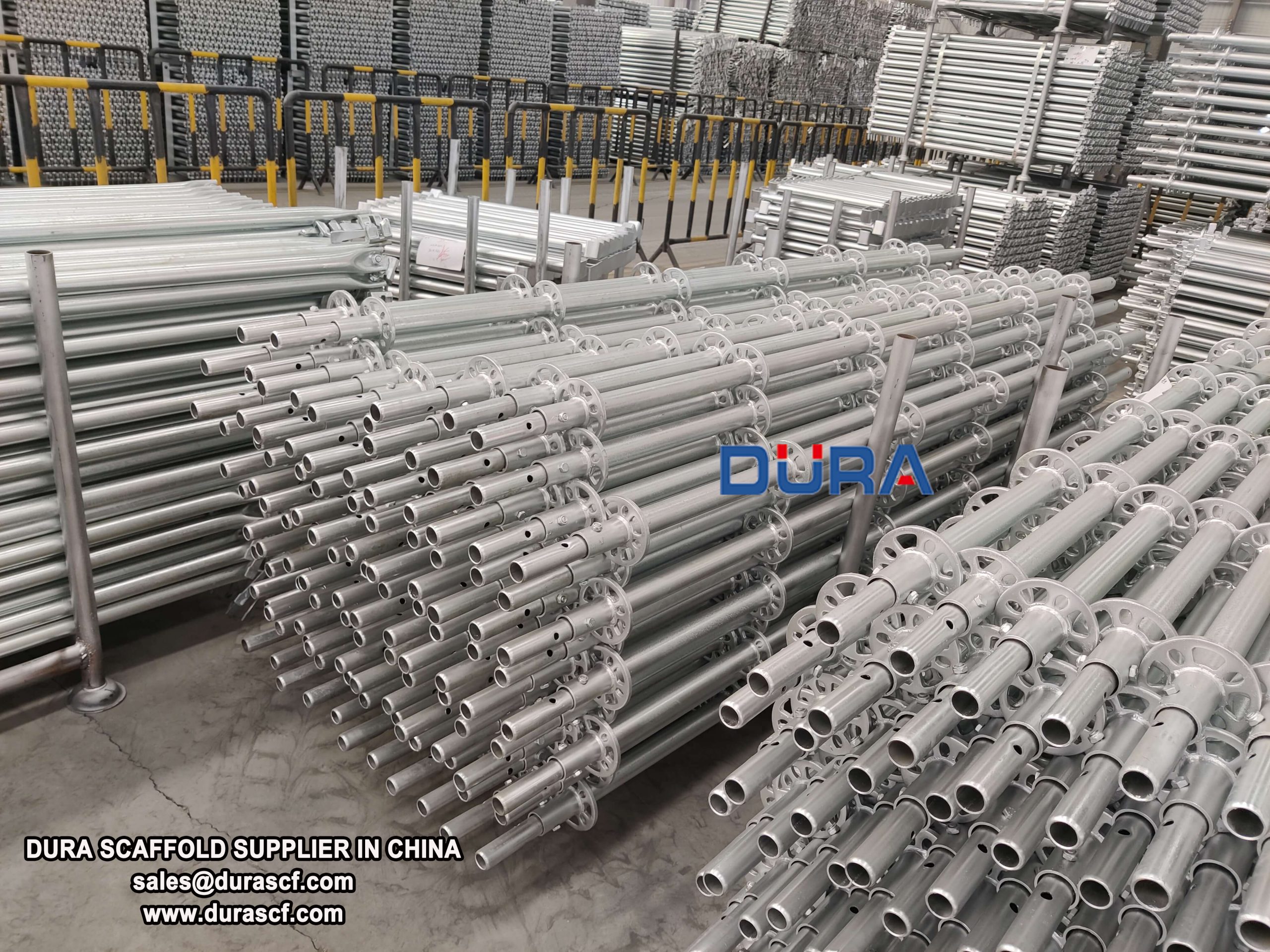

Ringlock Scaffolding Vertical Standard Parts with spigots

Certified as international standard EN12810 & AS/NZS 1576.
Our Ringlock Standards are made of high tensile steel material Q355.
Ringlock Scaffolding vertical’s sizes including common usual type Diameter 48.3mm*3.25mm thickness and Heavy-duty type 60.3*3.25mm, length from 500mm to 4000mm.
Ringlock scaffold post top can be connected by inner joint spigots or welded outer pipe.
Hot-dip galvanized & Electro-galvanized, also Painted system scaffolding surface finishing are available.
As China’s best scaffolding supplier, DURA can produce several types of Ringlock Scaffold Vertical’s connection:
1. Bolted connection of Ringlock Verticals
2. Pressed-In type connection of Ringlock Verticals (Monzon)
3. Open-End type connection of Ringlock Verticals.

As a basic component of the Ringlock scaffolding system, the Ringlock scaffolding vertical standard has the pole welded with a disc rosette on each 0.50m steel pipe of a certain length.
And it connects with the Ringlock scaffolding ledgers and base Jack, sometimes a Diagonal brace. Also, it can connect to a Layher scaffold bracket to create extra space.
Unlike the traditional scaffolding vertical standard internal connecting piece on the column has insufficient structure, and the connection with the column is not flexible enough, and it is easy to appear a bit stuck during the connection, which affects the installation.
The Ringlock scaffold vertical standard with spigot has the small openings on the connecting plate that are mainly used for ledger and beam positions, and the larger openings are used for the diagonal brace to stable scaffolding and vertical supports.
DURA’s Ringlock scaffolding for sale including all scaffolding parts which can be erected Ringlock system scaffold.
As the leading and professional scaffolding manufacturer in China, we also can design and verify your scaffolding project to offer solutions. So just inquiry us below now!

DURA Ringlock Scaffolding Vertical Standard Post Specifications

Item No.	Product Name	Material	Size	Weight(kg)	Surface Treatment
DA-R1001A	Ring Lock Vertical 48.3X3.25mm	Q345	330mm	2.29	Hot-dip galvanized/Electro-galvanized
			500mm	3.2
			1000mm	5.7
			1500mm	8.07
			2000mm	10.45
			2500mm	12.8
			3000mm	15.3
			4000mm	20.11
